技術數據
| 接口 |
以太網
串口 |
10/100BaseT
2 x RS232/RS485
(SUB-D 15 pole)
1 x RS232
(螺釘端子，配置接口) |
| 波特率 |
以太網 最大100 Mbit/s
串口 RS232 1 Mbit/s 同步, 38,4 Kbit/s 異步
串口 RS485 1 Mbit/s 同步, 38,4 Kbit/s 異步
RS232 19,2 Kbit/s 異步 (配置接口) |
| 支持的協議 |
DK3964R/PTS5, freely definable ASCII-Protocol, LSV2, MSV2, HDLC-UNC-2, HDLC Frame Level, HDLC-BAC 2.8, X.25, SINEC-L1 |
| 尺寸 |
114,5 mm x 99 mm x 67,5 mm |
| 工作溫度范圍 |
0 - 40 °C |
| 存儲溫度 |
-40 – 100 °C |
| 安全 |
EN60950 |
| 電磁兼容 (EMV) |
EN50081-2 and EN50082-2 |
|
訂貨說明
| 貨號 |
項目 |
| 4000-2-S 0 0 -H-* |

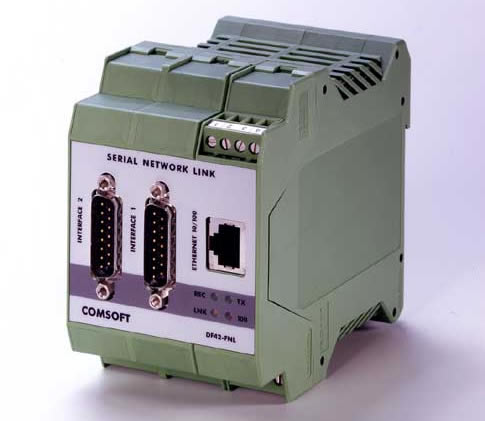

SNL2-E Hardware
|
4000-2-S ?? ?? -3-*
D
A
L
M
A
B
L |
Board Driver / Protocol Driver
LINUX board driver
COMDRV (3964R, S5) RK512 protocol driver
SINEC-L1 protocol driver
Windows 2000/XP board driver
COMDRV (3964R, S5) RK512 protocol driver
UNIDRV (XON/XOFF/LAUF) protocol driver
SINEC-L1 protocol driver |
4000-2-4 0 1 -H
4000-2-4 0 3 -H
4000-7-0 0 4 -S
4000-7-0 0 5 -S
4000-7-0 0 S -H
4000-7-0 1 S -H |
Additional Equipment
RS232 adapter line from 15 to25 pins (0.2 m) in pairs
V11/TTY adapter
Serial cable set for SNL2-E
Ethernet cross-over cable
Power supply 24 V/1,3 A with 100-240 V
power boost for up to 2 SNL2-E/FNL/PRS
Power supply 24 V / 2 A with 100 - 240 V power boost for up to 5 SNL2-E/FNL/PRS |
* 請填寫訂單號，再加上E（英文版文檔）或者D（德語版文檔）。 |

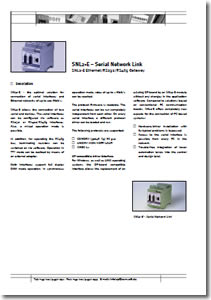

產品說明和貨號（PDF下載） |
